SmarTerminal-Smart Technology for Vehicle mount PC, Tablet PC and Handheld PC

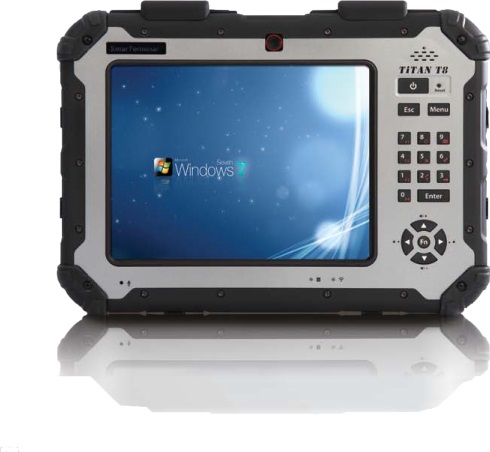

TiTAN T8 for Hand Held and Mobile Vehicle Solution

Display

Sunlight Readerable 8.4" TFT touch screen display, SVGA 800 x 600, 600NIT

XGA 1024 x 768 provide on 3Q 2011 (Option)

Environment

Storage Temperature :
-20° to 60° C (-4° to 140° F)
Humidity :
5 % to 95 % RH Non-condensing
Vibration and Shock protection :
Withstands standard material handling vehicle environments.
Meets or Exceeds MIL-STD-810F
Operating Temperature :
0° to 50° C (32° to 122° F)

Environmental Protection : Sealed to IP65 (Dust tight and jetted water)

Memory and Storage

DDR2 1GB RAM standard, Option expandable up to 2GB

Microprocessor

Intel® Atom, N450 Low Power 1.66GHz Embedded Processor

Operating System

Windows XP Professional Edition
Windows XP Embedded

Windows 7 Home Primium

Windows 7 Professional

Windows 7 Ultimate

Network Characteristics

IEEE 802.11 a/b/g/n radio with industry standard wireless security protocols (Option)

10/100/1000 base-T Ethernet

Bluetooth (v2.1 + EDR class 2) (Option)

GPS : 9600bps (Option)

CDMA 3G / GPRS/GSM (Option)

Hard Drive Options

SATA 2.5 160G Hard Disk or higher

Solid State Drive options for rugged, vehicle / freezer based applications (Option)

Interfaces

(1) Standard Serial Ports – DB9

(2) USB Host ports ver 2.0
(1) PS/2 Keyboard & Mouse Port

(1) 2 x Digital Input / 2 x Digital Output

(1) Docking connector (60pin)

Internal RF Antenna for GPS and mobile (Option)

Audio 3.5mm stereo jack / Microphone In

Front Camera 1.3M, Rear Camera 3.0M (Option)

Control Button

ESC, Enter, Menu, Navigation Keys, Numeric Keypad

LCD Backlight Control, Volume control

Software

TiTAN Utility

TiTAN Camera View

Battery

Main Battery 4,500mA / Backup Battery 1,100mA

Dual Battery Designed for longer life with hot swap capability

Physical Characteristics

Depth of 4.2 cm (1.65 in.) / Width : 25.5 cm (10.05 in.) / Height : 19.7 cm (7.76 in.) / Weight : 2.1 kg (4.6 lbs.)

Power

AC/DC Converter input 110/220V (60 watts) AC for output 12V DC systems.

External DC/DC converter 9~70V (100 watts) DC input DC/DC for 12V systems. (Option)

Display

Environment

Memory and Storage

Microprocessor

Operating System

Network Characteristics

Hard Drive Options

Interfaces

Control Button

Software

Battery

Physical Characteristics

Power

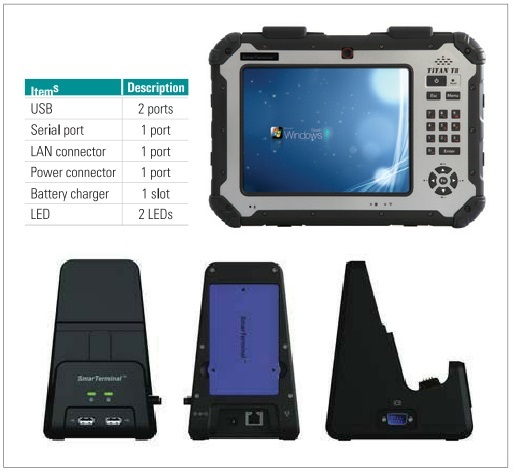

Desktop Cradle

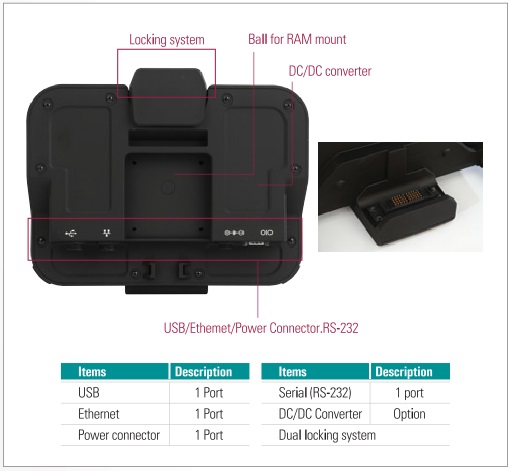

Vehicle Cradle
