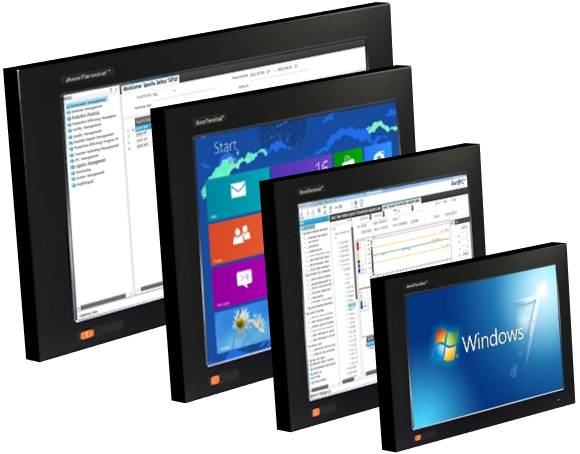

Panel SP15

* 15" Resistive Touch, 1024*768 (350 NIT)

* Intel Celeron, Quadcore (Optional i3, i5)

* Fanless All-In-One Panel computer

* Washable IP 65 (Front)

* Vehicle mountable Terminal, 100 x 100 VESA mount

* Wide Temperature : -10C to 70C



Product Specifications

Model

SP15

LCD

Size

15

Resolution

1024x768, XGA

Brightness

350

Touch Screen

Resistive 5 Wire, TFT Touch Screen Display

System

OS

Win 7 / 8 / 10

CPU

Intel Celeron J1900 (Quad Core)

RAM

DDR3 4GB (Up to 8GB)

Storage

2.5 SATA (Optional : 500G HDD, 60G/120G SSD)

Input / Output

 4xUSB 2.0 , 1xVGA , 3xRS23/422/485 , 2xEthernet

System Cooling

Fanless

Peripheral

WLAN

IEEE 802.11 a/b/g/n

Bluetooth

V2.1 + EDR Class 2

Physical

Mounting

Wall, Stand, Vehicle, Rack (VESA 100x100)

Color

Modern Black

Dimensions

376x300x70mm)

Weight

4.3kg

Environment

Operating

-10 C to 70 C

Storage

-30 C to 80 C

Humidity

5% to 95% RH Non-Condensing

IP Level

IP 65(Front)

Certification

KC, FCC, CE

Power

AC/DC

Input 110/220V(60W) AC for Output 12V DC
