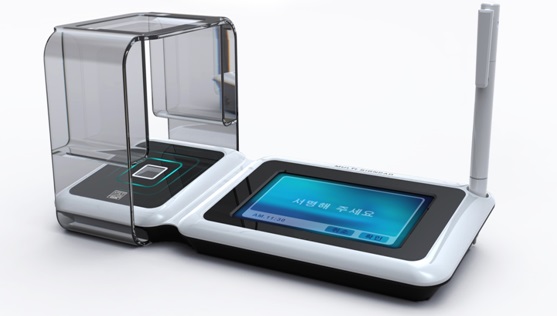

Smart-S100 Signature Capture Pad (Barcode)

Display

3.2" Touch Screen TFT LCD WQVGA

Environment

Storage Temperature : -20°C to 70°C

Operation Temperature : 0°C to 50°C

Memory and Storage

ROM - 128MB / Micro SD (MAX 32GB)

RAM - 128MB

Microprocessor

Samsung ARM 9 Processor, 400Mhz

Operating System

Linux

Barcode Scanner

1D, 2D (QR / DM Barcode Decoding)

Sound

Buzzer

Interfaces

(1) RS232C (RJ11)

(1) USB ver 1.1 Host

(1) USB Slave (USB to Serial)

(1) Mono Speaker (Optional)

Dimensions

75(W)mm x 30(H)mm x 80(L)mm

180g

Power

500mA@DC5V Below

Certification

KC
