SmartNL-RF Antennas

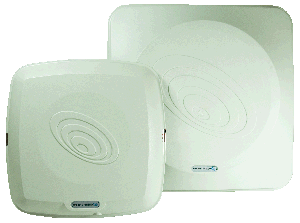

SmartNL-AT1/AT2 Antenna

Performance Characteristics

Operation Frequency: 902MHz~928MHz



Central Frequency

SmartNL-AT1: 915MHz (L), 919MHz (C)

SmartNL-AT2: 915MHz (L), 919MHz (C)



Environmental Protection

IP65 Rated



Polarization: LINEAR, RHCP

Voltage standing wave ratio : 1.3:1 max. Ratio



Beam Width

SmartNL-AT1: 70 degree typical (L)/ (C)

SmartNL-AT2: 70 degree typical (L), 65 degree typical (C)



Typical Gain

SmartNL-AT1: 8.0dBiL (L)/ 5.3dBiL (C)

SmartNL-AT2: 8.0dBiL (L)/ 6.0dBiL (C)



Dimension

SmartNL-AT1 Length: 200mm (7.9 in.)/ Width: 200mm (7.9 in.)/ Thickness: 30mm (1.1 in.)/ Weight: 600g (1.1lbs.)

SmartNL-AT2 Length: 260mm (10.2 in.)/ Width: 260mm (10.2 in.)/ Thickness: 40mm (1.2 in.)/ Weight: 800g (1.3lbs.)
