Tablet PC

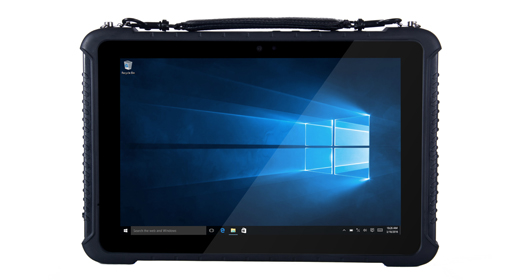

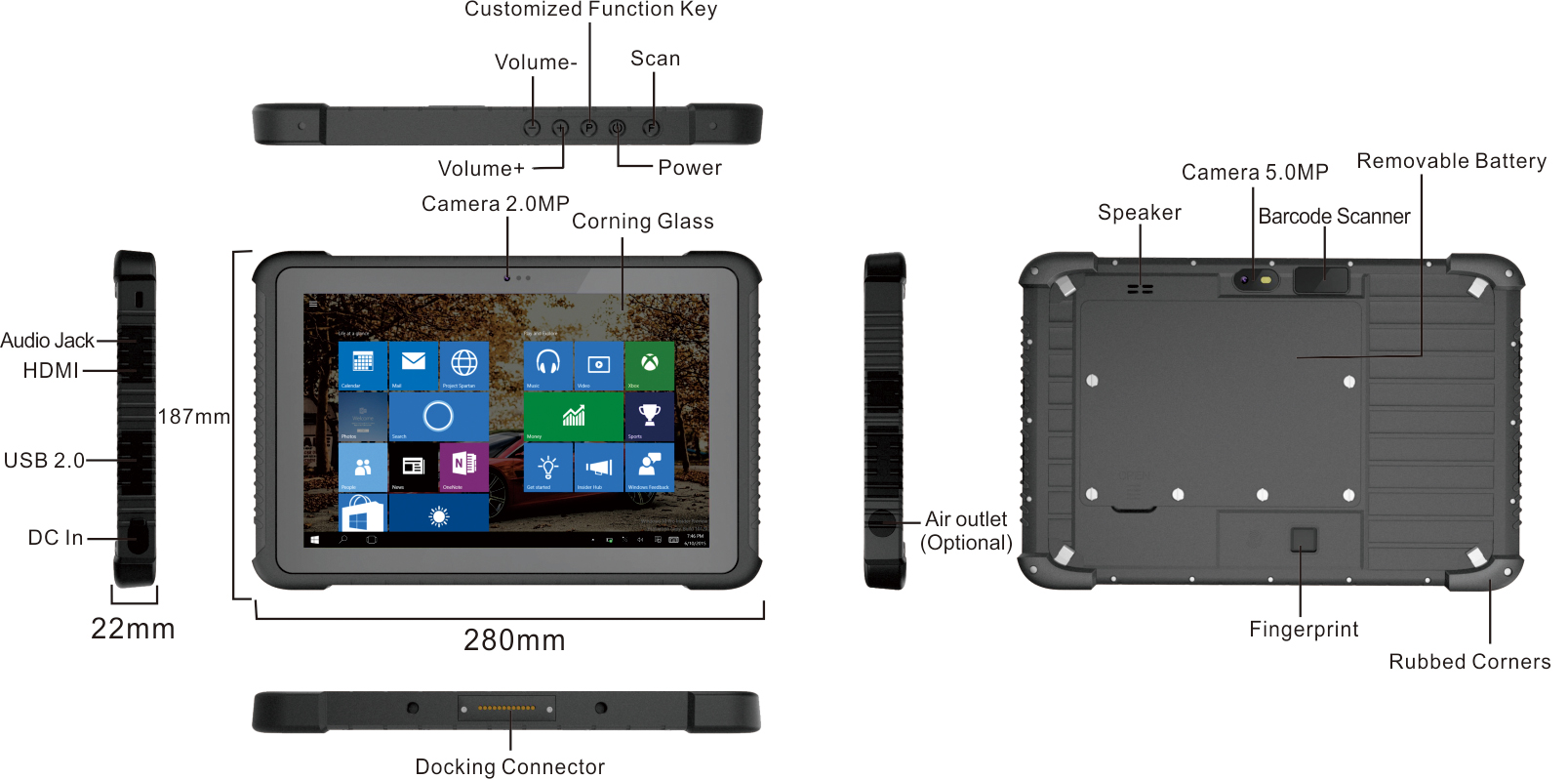

TiTAN S10

* WIN 10 Home / Pro / IoT, Android 5.1

* IP65 Standard(Dustproof / Waterproof / Shockproof)

* 3G/4G, BT4.1, Double Band WiFi 802.11(a/b/g/n)

* NFC, GPS, 1D/2D Barcode Scanner, Fingerprint, Air Outlet

* High Strength Glass Touch Screen

* 10000mAh Polymer Lithium Removable Battery

* Docking Charging Extension, Strap


Product Specifications

Model

TiTAN S10

CPU

Intel Cherrytrail Z8350

GPU

Intel HD Graphics

OS

Windows 10 Home / Pro / IOT, Android 5.1

Display

10.1" 800 x 1280

Touch Screen

10-point capacitive touch

RAM

2GB/4GB DDR3L

ROM

32GB/64GB/128GB

Camera

Front : 2.0MP with charging indicator light

Rear : 5.0MP

Speaker

Embedded 8/0.8W waterproof speaker x 1

MIC

Sensitivity:-42db, output resistance:2.2k

Bluetooth

BLE 4.1

3G/4G

Support

Size

280*187*22mm

Weight

1.21kg

G-Snesor

Gravity acceleration sensor

RF

WiFi 802.11(a/b/g/n) Dual Band 2.4G + 5.8G

Battery

3.7V / 10000mAh

TF Slot

Support TF x1 max : 128G

USB Interface

USB 2.0*1Hostfor windows / Android OTG x1

OTG

USB OTG to MICRO USB cable

Headphone Jack

3.5mm Standard headphone jack x1

Extensive Slot

12pin  Pogo Pin x1

DC Interface

DC 5V 3A 3.5mm connector x1

HDMI Interface

HDMI 1.4a Type C x1

Port

DB9 Port x1(RS232), RJ45 Port x1

Power Adaptor

AC100V ~ 240V50Hz/60Hz output DC 5V/3A

Rugged Feature

IP-65

Application Module

1D/2D Scan, NFC, GPS, Fingerprint

Certification

CE NB,MIL-STD-810G,battery UN38.3MSDS,IEC62133

Operating Temperature

-10 C to 50 C

Storage Temperature

-30 C to 70 C

Humidity

95% Non-Condensing
