Payment

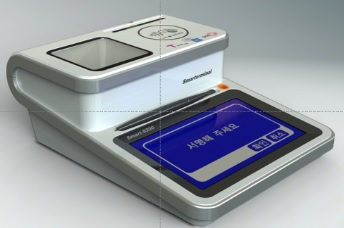

Smart-S200

Integral payment device

Payment, barcode reader, signature capture pad, and even video advertising

All in Smart-S200!



Smart-S200 Signature Capture Pad (Barcode, IC card, NFC & Video)



Display

4.3" Touch Screen TFT LCD WQVGA

REsolution : 480 x 272



Environment

Storage Temperature : -20C to 70C

Operating Temperature : 0C to 50C



Memory and Storage

ROM - 128MB / Micro SD (Max 32GB)

RAM - 128MB



Microprocessor

Samsung ARM 9 Processor, 400Mhz



Operating System

Linux



Network

10/100 Base - T Ethernet (Optional)



Barcode Scanner

1D, 2D (QR / DM Barcode Decoding)



RFID (HF Only)

ICC - ISO7816 (EMV L1)

Contactless - ISO14443 A/B, Mifare, ISO18092 (NFC)



Video

MPEG-1, MPEG-2, Dvix

AVI, ASF max 640x480



Sound

Mono Speaker



Interfaces

(1) RS232C (RJ11)

(1) USB ver 1.1 Host

(1) USB Slave (USB to Serial)

(1) Mono Speaker



Dimensions

130(W)mm x 130(H)mm x 175(L)mm

320g (including standard battery)



Power

AC/DC Converter input 110/220V AC, otput DC 5V (5Watts)
