Industral PC

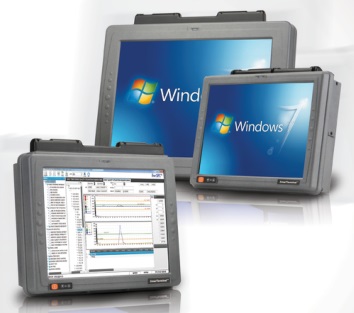

SmartStation Series

SmartStation series of Industrial Computers are designed

for the harshest of environments with its Aluminum casing.

Its different sizes and the flexibility to be customized allows

the SmartStations to be installed from the factory floor to

onboard vehicles.


SS10/SS12/SS15 Fixed & Vehicle Mount Computer


Display

SS10 : 10.4"  TFT touch screen display, 300NIT
SS12 : 12.1"  TFT touch screen display, 500NIT
SS15 : 15.0"  TFT touch screen display, 250NIT


Environment

Storage Temperature :
-20° to 60° C (-4° to 140° F)
Humidity :
5 % to 95 % RH Non-condensing
Vibration and Shock protection :
Withstands standard material handling vehicle environments.
Meets or Exceeds MIL-STD-810F
Operating Temperature :
Standard :
-20° to 50° C (-4° to 122° F) – Solid State
0° to 50° C (32° to 122° F) – Rotating
Extreme Operating Temperature (Option)
-30° to 50° C (-22° to 122° F) – Solid State Drive (With heated display option)
Environmental Protection : Sealed to IP65 (Dust tight and jetted water)


Memory and Storage

DDR2 1GB RAM standard, Option expandable up to 2GB

Microprocessor

Intel® Atom, N270 1.6GHz Processor


Operating System

Windows XP Professional Edition
Windows XP Embedded
Windows 7 Home Primium
Windows 7 Professional
Windows 7 Ultimate


Network Characteristics

Cisco® Compatible IEEE 802.11 a/b/g/n radio with industry standard wireless security protocols

Gigabit Ethernet on-board



Hard Drive Options

SATA 2.5 160G Hard Disk or higher

Solid State Drive options for rugged, vehicle / freezer based applications

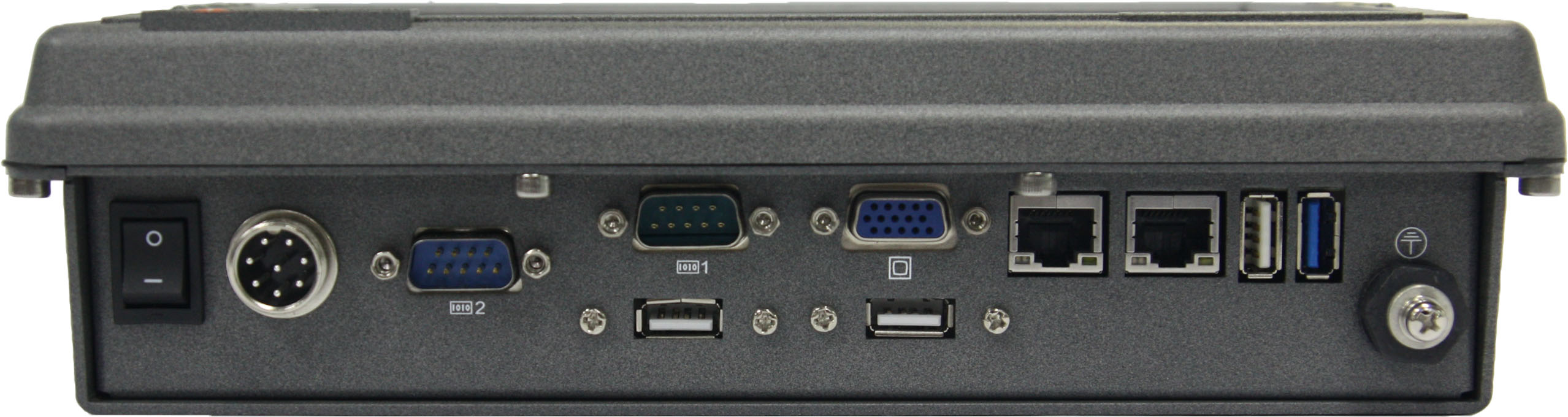

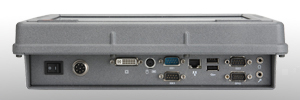

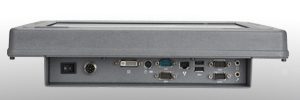

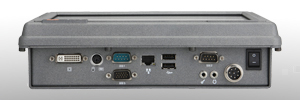

Interfaces

(2) Standard Serial Ports – DB9 / (1) Addtional Serial Port option
(2) USB Host ports ver 2.0
(1) PS/2 Keyboard & Mouse Port

Audio 3.5mm stereo jack / Microphone In

Soft shotdown On / Off Switch
(1) Locking Power Input

(1) 4 x Digital Input / 4 x Digital Output



Physical Characteristics

SS10 Length : Depth of 7.7cm (3 in.) / Width : 25.8cm (10.1 in.) / Height : 22.1cm (8.7 in.) / Weight : 2.4kg (5.3 lbs.)
SS12 Length : Depth of 9.7cm (3.8 in.) / Width : 30.6cm (12 in.)  / Height : 26.7cm (10.5 in.) / Weight : 3.5kg (7.7 lbs.)

SS15 Length : Depth of 10.4cm (4.1 in.) / Width : 38.4cm (15.1 in.) / Height : 33.3cm (13.1 in.) / Weight : 5kg (11 lbs.)



Power

AC/DC Converter input 110/220V (60 watts) AC for output 12V DC systems.

External DC/DC converter 9~70V (100 watts) DC input DC/DC for 12V systems.
