RFID Reader

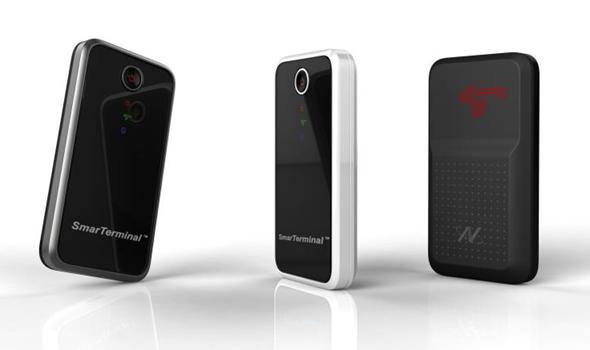

Smart-R400

It reads UHF RFID tags and can be connected to Smart Phone (Android or iOS), Handheld computer, Laptop thru Bluetooth function.

It¡¯s easy to apply who wants to implement RFID solution.

This model enables your high mobility for anywhere the RFID tag to be read and send to central server.


Dimension
96mm x 50mm x 15mm


Storage Temperature
-20¡ÆC to 70¡ÆC, Operating Temperature: -20¡ÆC to 60¡ÆC


Battery
850mAh Li-ion Battery (3.7V)


Regulation
KCC, FCC, CE- on going


Interface
5pin USB (chargeable thru USB)


RF Protocol
EPC C1G2 / ISO 18000-6C


Frequency
840MHz~960MHz


Data Rate
40Kbps~640Kbps supported


Host
Bluetooth (EDR2.1 SPP )


RF output adjusting
3dBm~20dBm by 1dB interval
