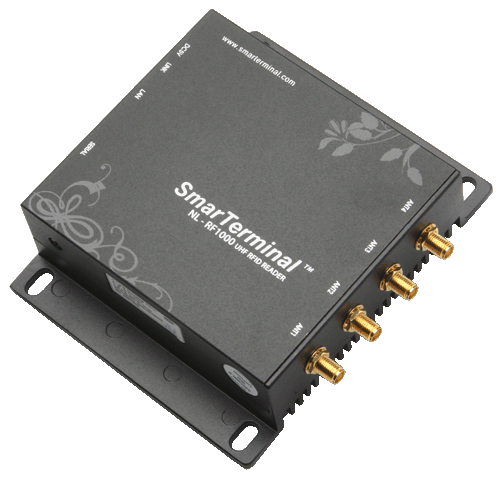

RF1000 Fixed RFID Reader

Air Interface Protocols

EPCglobal UHF Gen 2, ISO 18000-6C, EPC Class 1

Frequency Range

US : 902MHz ~ 928MHz, EU : 865.6MHz ~ 867.6MHz

Certifications

FCC, CE

Communications Interface

RS232, Ethernet 100Mbps (RJ45 Connector)

Environment

Operating Temperature : -20°C to 50°C (-13°F to 131°F)
Storage Temperature : -30°C to 75°C (-22°F to 167°F)
Humidity : 10% to 90%(non-condensing)

Phsical Characteristics

Length: 107mm (4.2 in.) / Width: 98mm (3.8 in.) / Height: 31mm (1.2 in.)
Weight: 476g (1.04 lbs)

User Interface

Antenna:1-4, Ethernet, RS-232

Indicator : 3 LED

Powerrface

AC/DC Converter input 110/220V (25 watts) AC for output 5V DC systems.

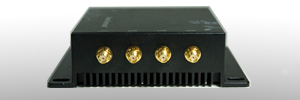

 Antenna ports

 4 Ports to connect Antenna

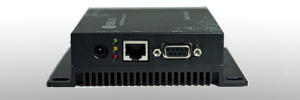

 I/O Parts

 5V DC power jack

 RJ45 port

 3 LEDs

 RS-232 port

 Power

 AC/DC Converter input 110/220V (25watts) AC for output 5V DC systems.

 Ethernet Cable

 RJ45

 Fixed and vehicle mount computers support for RFID, enabling either wired operation

 with SmartNL-RF1000.

 Designed by stainless steel, IP65/NEMA 4 sealed unit to meet the hygienic standards in food processing

 healthcare, chemical and pharmaceutical industries.
