RFID Reader

SmartNL-RF USB

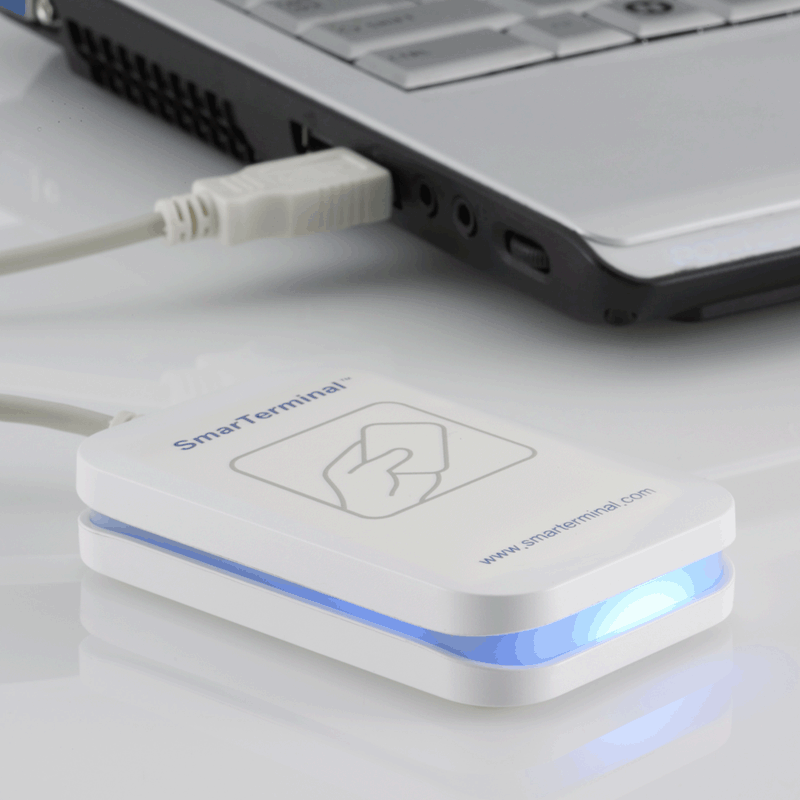

SmartNL-RF USB Reader is a low cost platform for

developing and deploying interactive read/write applications. Driven by UHF/HF/LF RFID reader module, the USB RFID Reader is controlled and powered by a desktop or notebook PC. Supporting userí»s application development tools, the USB RFID Reader's small size, integrated antenna, ease of deployment and low cost make it ideal for application developers.


RFID USB TYPE READER


Supported Protocol

SmartNL-LF100 : HD
SmartNL-HF100/200/400 : 14443A/ 14443B/ 15693
SmartNL-RF300 : ISO 18000-6 Type-B/C, EPC Gen2, Class 1


Frequency

SmartNL-LF100 : 125KHz
SmartNL-HF100/200/400 : 13.56MHz
SmartNL-RF300 : 910MHz~914MHz


Power Consumption

SmartNL-LF100 : 30mA DC5V
SmartNL-HF100/200/400 : 50mA DC5V
SmartNL-RF300 : 500mA below DC5V


Physical Characteristics

Dimensions :

Length : 53mm (2 in.) / Width : 85mm (3.3 in.) / Depth :  17mm (0.6 in.)

Weight : 20g (0.04 lbs.)
